Vitacast Bloc

Product Description

Design

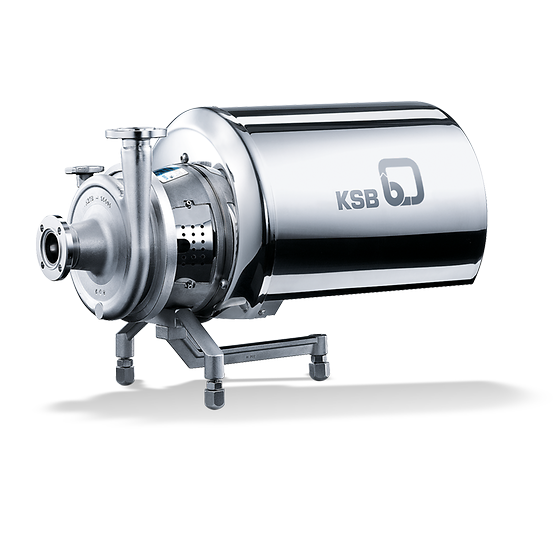

Service-friendly volute casing pump with magnetless KSB? SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system. All wetted components are made of 1.4404/1.4409 (AISI? 316L/CF3M) stainless steel. Designed with very little dead volume; open impeller, electropolished surface, excellent efficiency. Hygienic design for the highest requirements on cleanability (CIP/SIP-compatible), certified by the TNO Nutrition and Food Research Institute to EHEDG standards. All materials comply with FDA standards and EN? 1935/2004. ATEX-compliant version available.



Application

Hygienic handling of fluids in the food, beverage and pharmaceutical industries as well as in the chemical industry.



Main applications

Breweries
Chemical industry
Food and beverages
Industry engineering
Pharmaceutical/Biotechnology
Sugar



Technical data

Q max
560.0 m?/h
H max
100.0 m
