Vitachrom

Product Description

Design

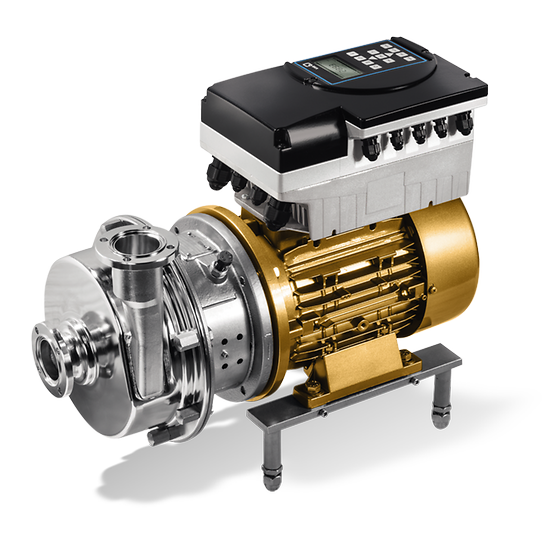

Service-friendly non-self-priming single-stage hygienic close-coupled pump in back pull-out design with magnetless KSB? SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system. The pump features a semi-open impeller and electropolished surfaces. It is very easy to clean by CIP/SIP thanks to its almost complete lack of dead volume or narrow clearances. Its wetted components are made of 1.4404/1.4409 (AISI? 316L/CF3M) stainless steel. Vitachrom is EHEDG-certified. All materials comply with FDA standards and EN? 1935/2004. ATEX-compliant version available.



Application

Hygienic handling of fluids in the food, beverage and pharmaceutical industries as well as in the chemical industry.



Main applications

Breweries
Chemical industry
Food and beverages
Industry engineering
Pharmaceutical/Biotechnology
Sugar



Technical data

Q max
340.0 m?/h
H max
100.0 m
