U

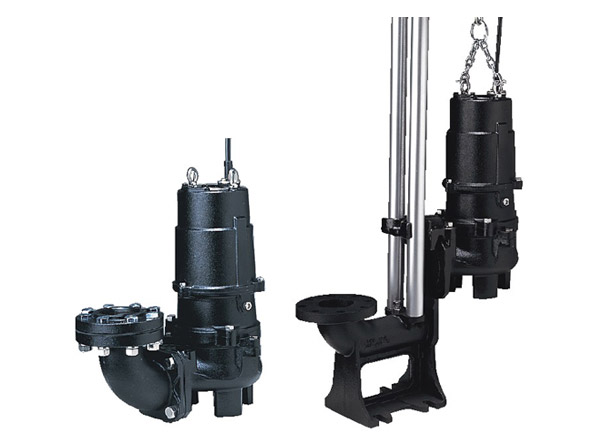

The U-series is a 2-pole motor, compact type submersible pump equipped with a vortex impeller for pumping sewage and wastewater. The semi-vortex design provides a solids passage that is 70% or more* of the discharge bore, thus reducing troubles caused by the clogging of fibrous solids to a minimum. Rotation of the impeller produces vortex flow in the pump casing, which allows those solid matters to be pumped out with minimum contact to the impeller.
* excluding model 80U21.5
Product Description
Pumps with Vortex Impeller
Discharge Bore(mm) : 50 – 80
Motor Output(kW) : 1.5 – 3.7
The U-series is a 2-pole motor, compact type submersible pump equipped with a vortex impeller for pumping sewage and wastewater. The semi-vortex design provides a solids passage that is 70% or more* of the discharge bore, thus reducing troubles caused by the clogging of fibrous solids to a minimum. Rotation of the impeller produces vortex flow in the pump casing, which allows those solid matters to be pumped out with minimum contact to the impeller.
* excluding model 80U21.5
