JD

0 out of 5 based on 0 customer ratings

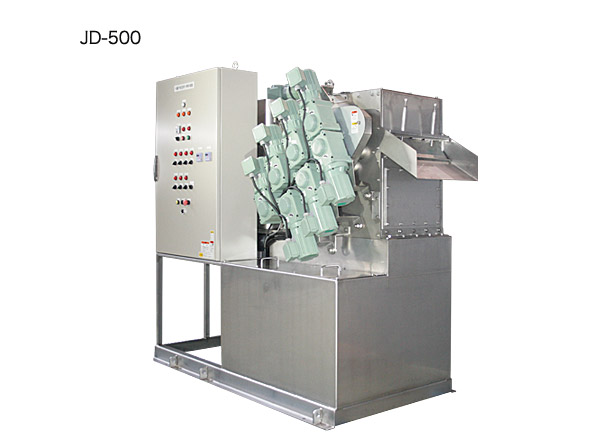

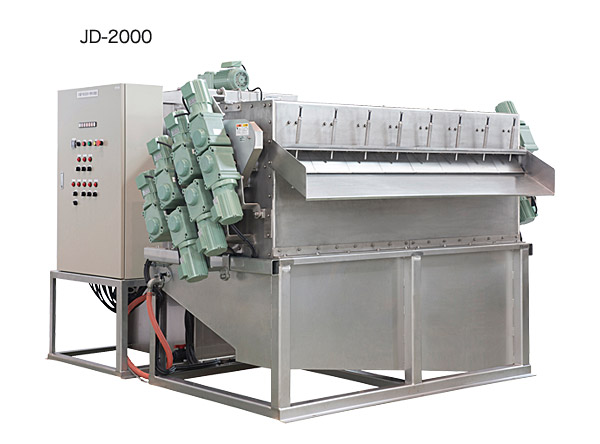

The JD-series is an organic sludge dehydrator utilizing the concepts of “gravity-filtration” and “compression”. A total of 14 rollers comprising of multi layered discs form the filter of the equipment. Since all the rollers always rotate when it is in service, the flocculated sludge is hard to be plugged-up, therefore, this dehydrator can be used not only for the excess sludge generated from various types of wastewater treatment but also for an oily sludge or DAF froth.

Multi-Disc Dehydrators

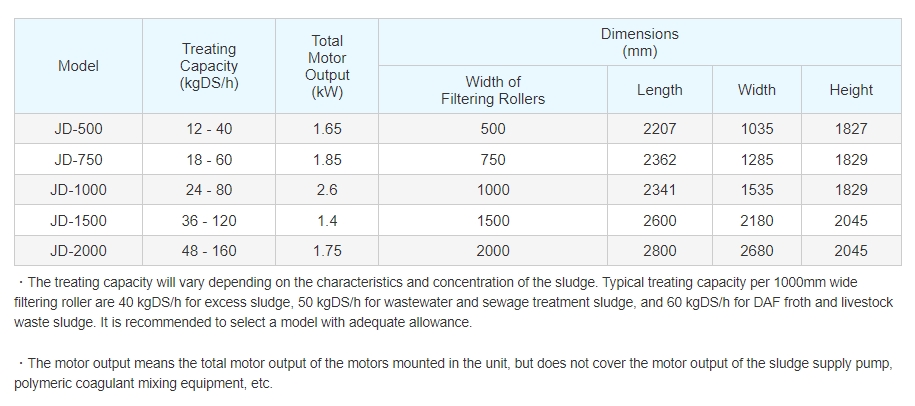

Treating Capacity (kg-DS/h)         :       12 – 160

The JD-series is an organic sludge dehydrator utilizing the concepts of “gravity-filtration” and “compression”. A total of 14 rollers comprising of multi layered discs form the filter of the equipment. Since all the rollers always rotate when it is in service, the flocculated sludge is hard to be plugged-up, therefore, this dehydrator can be used not only for the excess sludge generated from various types of wastewater treatment but also for an oily sludge or DAF froth.

In addition, since the rollers rotate in a very low speed with small-sized motors, the dehydrator saves energy, and also, noise and vibration are minimum.
