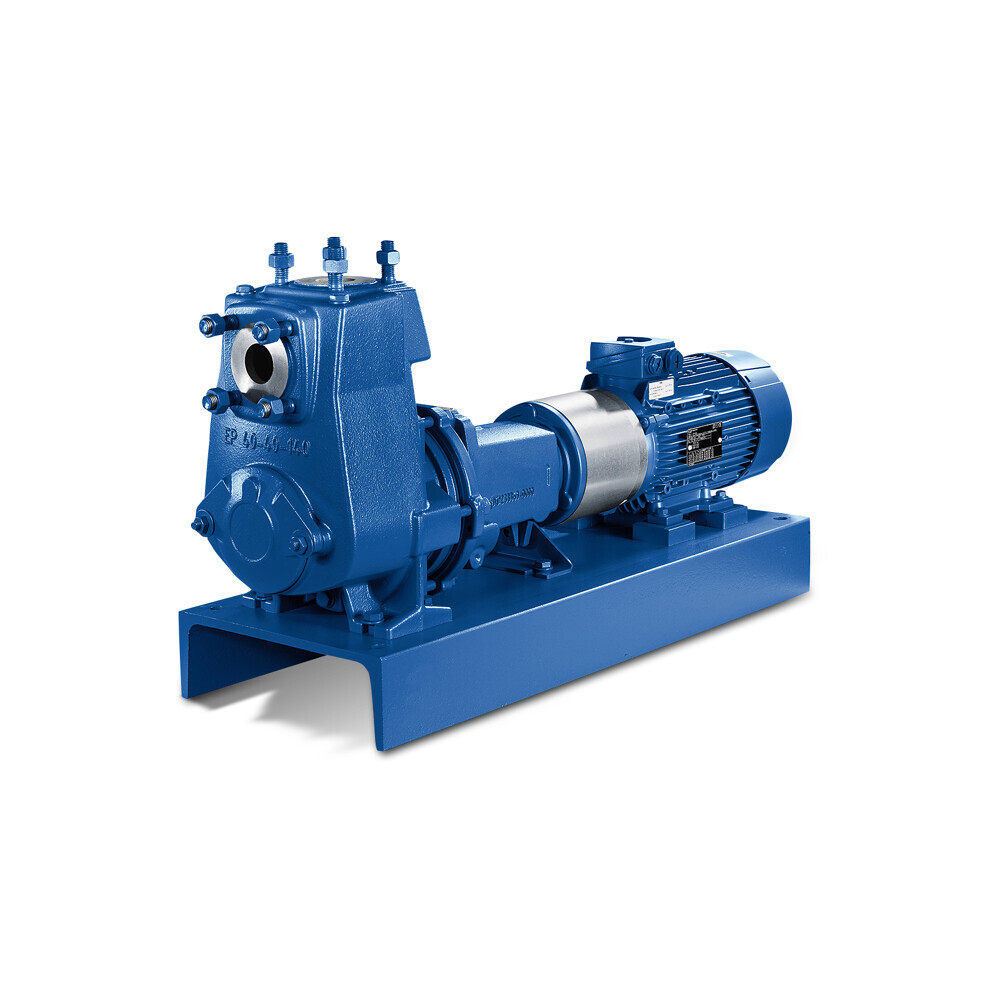

Etaprime L

Dry-installed pump

Horizontal self-priming volute casing pump, single-stage, with open multi-vane impeller, from size 40-40-140 with bearing bracket, in back pull-out design, ATEX-compliant version available.

Main Applications



  • Spray irrigation systems
  • Service water supply systems
  • Drainage
  • Drainage systems
  • Fire-fighting systems
  • Lowering groundwater levels
  • Domestic water supply
  • Air-conditioning systems
  • Cooling circuits
  • Swimming pools
  • Water supply systems

Technical Data

Benefits

  • Maintenance-free mechanical seal ensures operating reliability
  • Easy to dismantle due to back pull-out design; no need to remove the pump casing from the piping
  • Good suction performance, self-priming up to 9 m suction lift, also suitable for applications with relatively poor inlet conditions (i.e. low or negative inlet pressure) and for handling fluids with entrained gas.
  • Optimised hydraulic components for high efficiency help reduce energy consumption
