Design

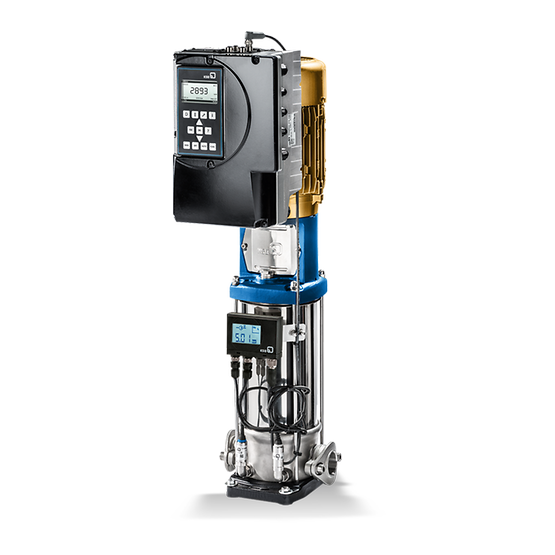

Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB? SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC? TS? 60034-30-2:2016, for operation with the KSB? PumpDrive? 2 or KSB? PumpDrive? 2? Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN? 50347, envelope dimensions in accordance with DIN? V? 42673? (07-2011). ATEX-compliant version available.



Application

Spray irrigation, irrigation, washing, water treatment, fire-fighting and pressure booster systems,
hot water and cooling water recirculation, boiler feed systems, etc.



Main applications

-Breweries
-Chemical industry
-Desalination
-Energy
-Food and beverages
-Heat transfer, Cooling circuits
-Industry engineering
-Irrigation
-Power Stations > 100 MW
-Special processes
-Systems
-Water
-Water works
-Watertransport
-Watertreatment



Technical data

Q max
190.0 m?/h
H max
401.0 m
