MegaCPK

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Design

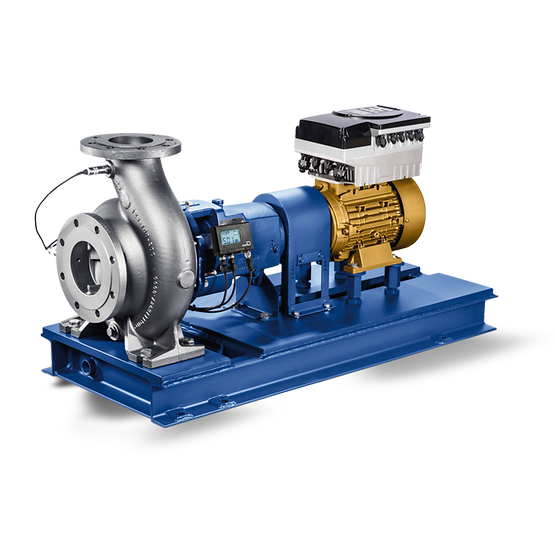

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to DIN? EN?ISO? 2858? / ISO? 5199; also available as a variant with “wet” shaft and conical seal chamber. With KSB? SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC? TS? 60034-30-2:2016, for operation with the KSB? PumpDrive? 2 or KSB? PumpDrive? 2? Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN? 50347, envelope dimensions in accordance with DIN? V? 42673? (07-2011). ATEX-compliant version available.



Application

Pumping aggressive liquids in the chemical and petrochemical industries and in refinery systems.



Main applications

Biofuels
Breweries
Chemical industry
Food and beverages
Industry engineering
Oil /Gas
Petrochemical Industry
Sugar



Technical data

Q max
1,160.0 m?/h
H max
162.0 m
