Etanorm

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Design

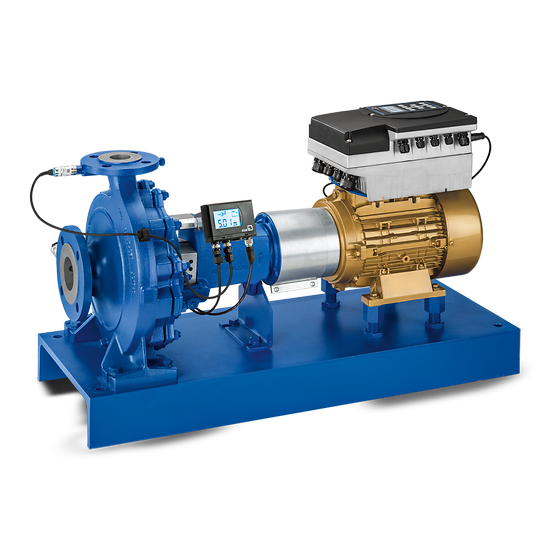

Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN? 733, long-coupled, back pull-out design, with replaceable shaft sleeves? / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB? SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC? TS? 60034-30-2:2016, for operation with the KSB?PumpDrive? 2 or KSB? PumpDrive? 2? Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN? 50347, envelope dimensions in accordance with DIN? V? 42673? (07-2011). ATEX-compliant version available.



Application

Pumping clean or aggressive liquids not chemically or mechanically aggressive to the pump materials in water supply systems, cooling circuits, swimming pools, fire-fighting systems, irrigation systems, drainage systems, heating systems, air-conditioning systems, spray irrigation systems



Main applications

Biofuels
Breweries
Building services
Chemical industry
Desalination
Energy
Fire fighting and sprinkler systems
Food and beverages
HVAC
Heating / ventilation / air-condition
Industrial waste water
Industry engineering
Irrigation
Municipal waste water
Power Stations < 100 MW
Power Stations > 100 MW
Pressure boosting
Process
Pumps used as Turbines
Rawwater transport
Steel
Suspended solids treatment
Systems
Turbine oil supply
Waste water
Water
Water supply
Water transport
Water works
Watertransport
Watertreatment



Technical data

Q max
740.0 m?/h
H max
160.0 m
