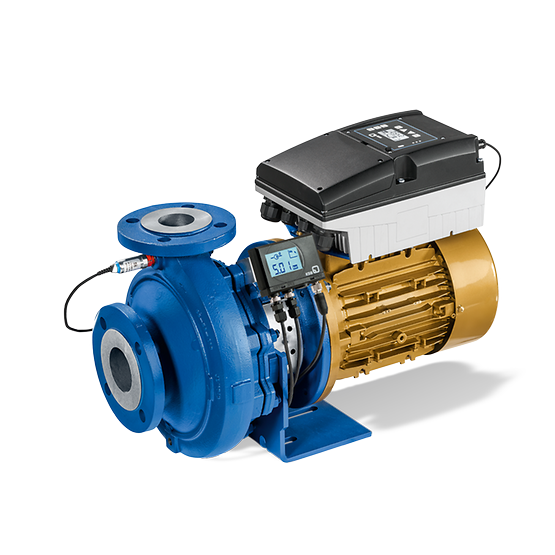

Etabloc

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Design

Single-stage close-coupled volute casing pump, with ratings to EN? 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB? SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC?TS? 60034-30-2:2016, for operation with the KSB? PumpDrive? 2 or KSB? PumpDrive? 2? Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN? 50347, envelope dimensions in accordance with DIN? V? 42673? (07-2011). ATEX-compliant version available.



Application

Pumping clean or aggressive liquids not chemically or mechanically aggressive to the pump materials in water supply systems, cooling water circuits, swimming pools, fire-fighting systems, irrigation systems, drainage systems, heating systems, air-conditioning systems, spray irrigation systems



Main applications

Breweries
Building services
Cooling water and condensate
Energy
Fire fighting and sprinkler systems
Food and beverages
HVAC
Heat transfer, Cooling circuits
Heating / ventilation / air-condition
Industrial waste water
Industry engineering
Irrigation
Municipal waste water
Power Stations > 100 MW
Process
Special processes
Steel
Suspended solids treatment
Swimming pools
Waste water
Water
Water supply
Water transport



Technical data

Q max
716.0 m?/h
H max
144.0 m
